11.4 Modifications

Selecting the Modifications tab from the header of the Graphic table takes you to the page containing the data on the part numbers impacted by protocol or until-from modifications.

The Modifications page is logically divided into two parts.
The top portion contains the table of modified items, where for each item there is the code, drawing, quantity in relation to the graphic table, description and standard note.
The lower portion has two different display modes: Modification Attributes, or Complete Modification.

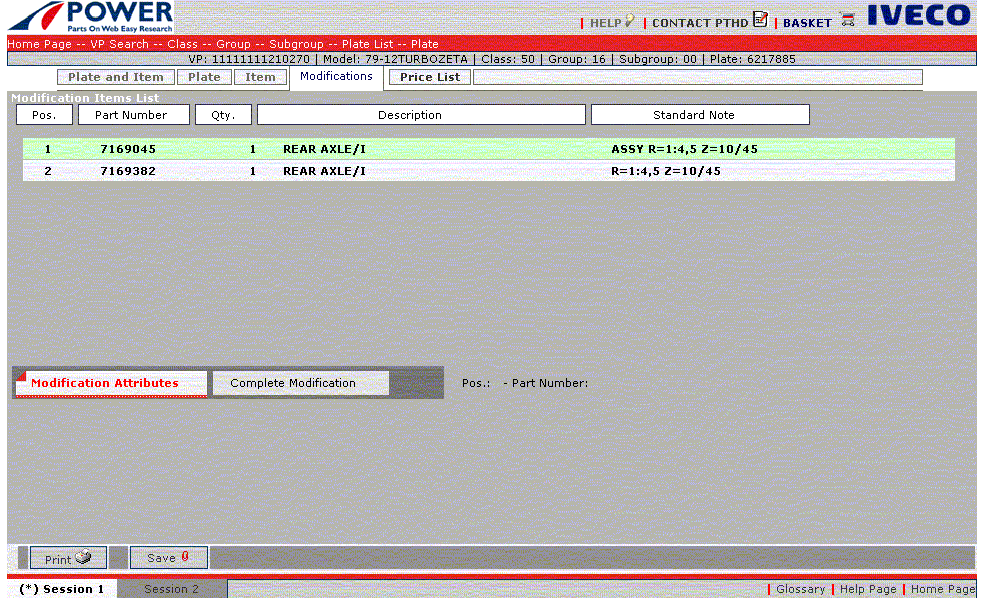

By selecting an item in the modified item list and the Modification Attributes display, the lower portion gives the attributes of the protocol modifications that impact the selected item, that is the protocol number, type and code of goal and type of substitution. If there are any modification rules, each one has the '+' symbol that when selected explodes the display of detailed data of the substituted part number and of the substitution of the modification rule.

Fig 4. Modification Attributes

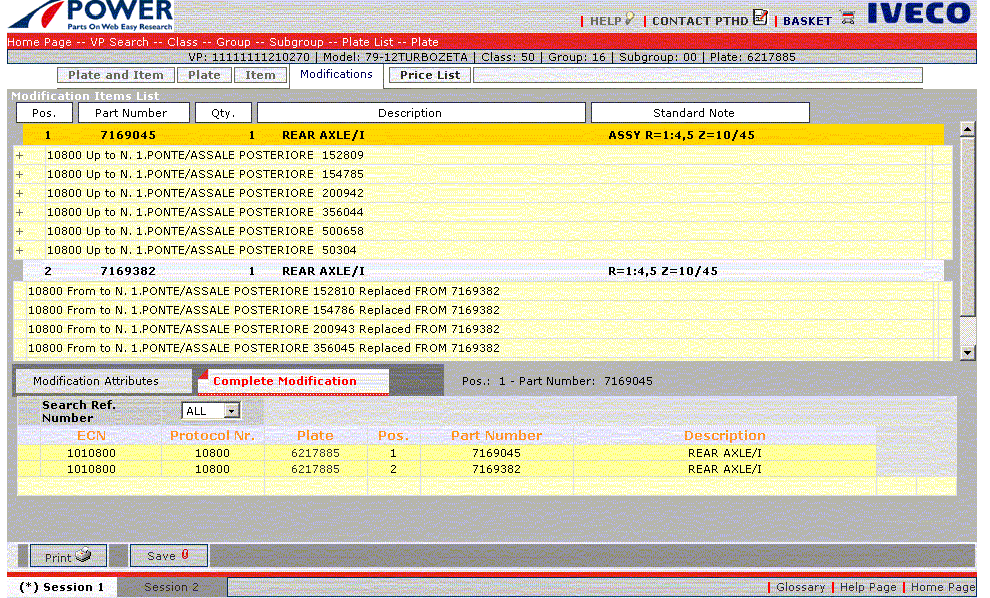

By selecting the Complete Modification display for each part number in the list it is possible to run the search on the part numbers impacted by a change to the protocol and the associated graphic table, stating the protocol number.

For the selected protocol number, the display shows the protocol No., table code, item, drawing code and description of the part numbers impacted by that protocol number and belonging to one of the tables associated with the specified vehicle. By default the window shows all the protocol modifications.
Selecting the table code takes you to the selected table.

Fig 5. Complete Modification

field	action
	menu from which you select the protocol number of the modification that you want to view, after making the selection you update data area of the Complete Modification
push-button	action
	Push button that prints out the modifications
	Push button to save the complete modifications or the attributes of a modification to file locally
Tab	action
	activates display of the attributes of the modification that impacts the selected item from the list of modifications
	activates a comprehensive view of the modification corresponding to the selected protocol(s).

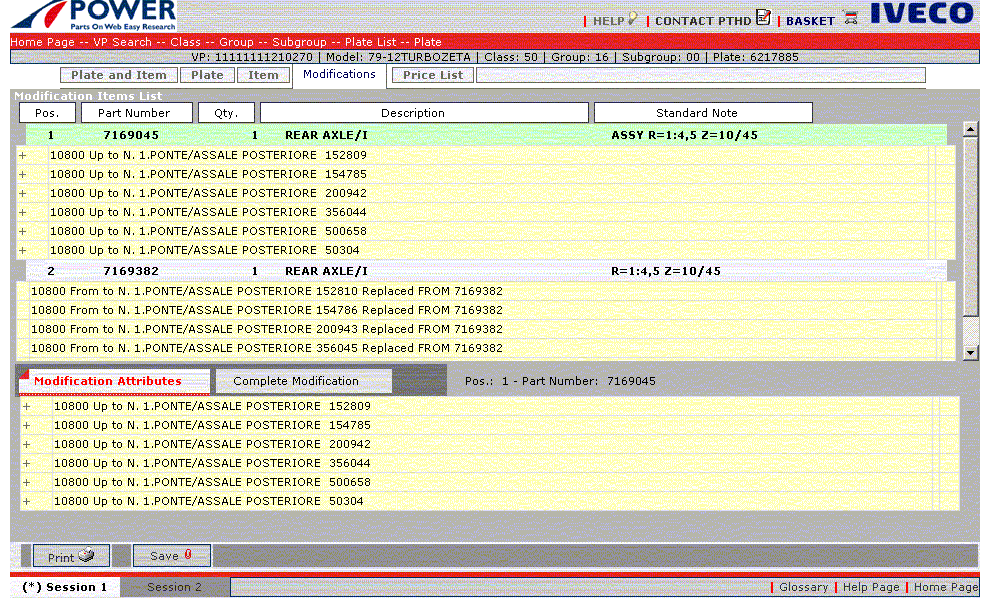

Fig 6. Modification Rule
