10 Graphic table

The graphic table is the end aim of the search functions managed by the Spare Parts Catalogue. There are different ways of accessing the Table; by specifying the Class - Assembly - Subassembly when the search is by VP, Chassis Frame, PIC ..., or directly in the case of search by Drawing. In this last case, after indicating the required drawing you go straight to select the Graphic Table matched with the drawing.
The Graphic Table contains the characteristic information on the spare parts:
  • Modifications
  • Personal notes
  • PTHD Notes
  • Attachments
  • Substitutions
  • Regenerated items
  • Price list
There are different ways of viewing the table:
  1. Table and Item, matches the graphic table with the list of items it contains
  2. Table only, contains the graphic view only
  3. item only, item and special data of the drawings on the table.

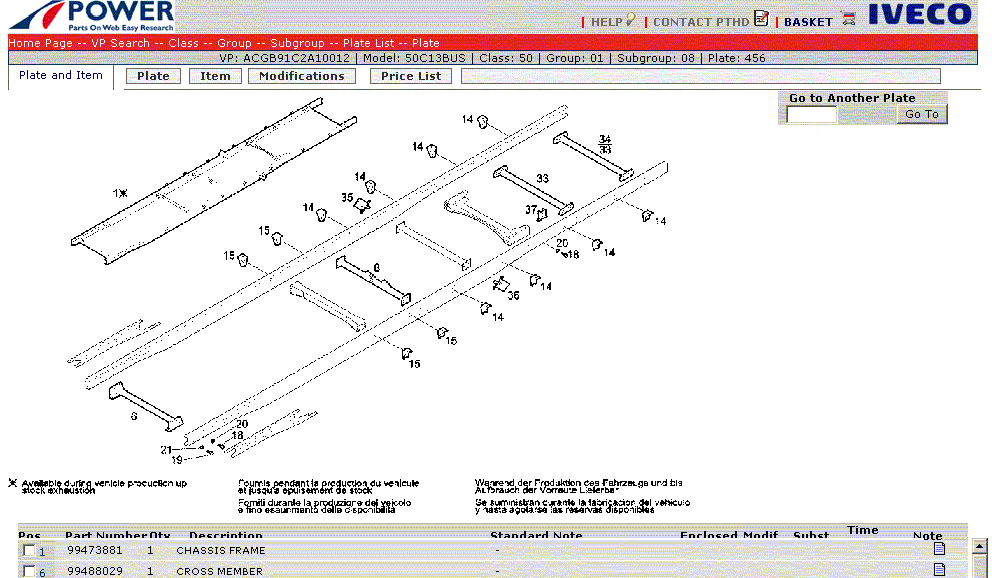

Fig 1. Graphic Table
