7.11 Search by Regenerated Spare Parts

This function lets you identify the details of a regenerated part, starting from the part code before regeneration, or the variant code, or the regenerated part code. From the search by regenerated part page you go to search by engine variant and by drawing. The function is activated from the Other Searches menu of the Home Page or from the functions menu on the search pages, selecting Regenerated Parts.
The displayed page requires specifying the regenerated type: Gearbox or Engine from the drop-down menu and specifying the code of the part that doesn't work, the code of the indicated gearbox/engine variant or the regenerated part code. After indicated one of the above-listed codes, the Check push button checks the entered data and enables selecting the remaining codes from the list.

Fig 29. Selecting regenerated part type

field	action
	field indicating the type of variant. Engine or Gearbox is a drop-down menu the selection filters the codes of the spare part for the type of part entered
	IVECO drawing code entered if known, or selected from the list that can be displayed with the icon alongside the code. The description is updated automatically after indicating the IVECO Drawing.
	engine or gearbox variant code; it can be entered if known, or selected from the list displayed with the icon alongside the field
	regenerated part code; it can be entered if known, or selected from the list displayed with the icon alongside the field
push-button	action
	the button checks the existence of the stated codes and updates the selection lists and the Notes field if there are any Notes matched with the part
	the push button activates the search by engine variant page initialized with the indicated variant code
	the push button activates the search by drawing page initialized with the indicated Iveco drawing code
	it clears the fields on the page to run a new search by regenerated part
icon	action
	icon to display the list of IVECO Drawing, Variant Code, Iveco Rebuilt.

The search continues by selecting one of the search buttons: Engine Variant Search and Drawing Search.

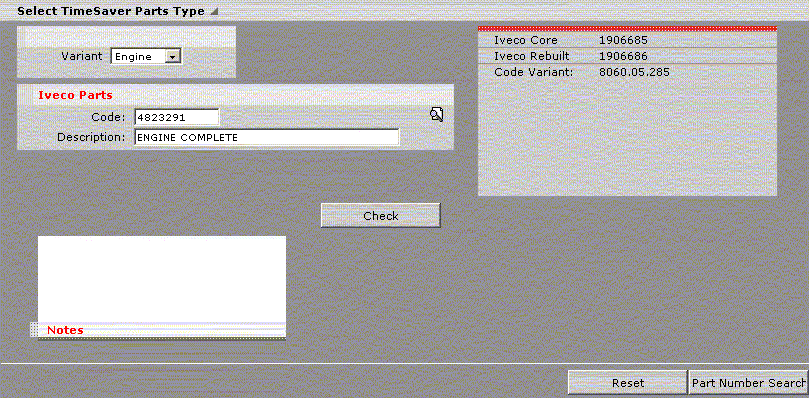

Fig 30. Search by Regenerated Spare Parts page
