7.12 Search by Supplier Serial Number

This function is used to identify a spare part starting with the supplier's code number. The function is activated from the Other Searches menu of the Home Page or from the functions menu on the search pages, selecting Supplier Serial Number.
The displayed page requires specifying the supplier's code number. After entering the code, selecting the Check push button checks for the code and if it exists, it updates the supplier description, drawing code and drawing description data.

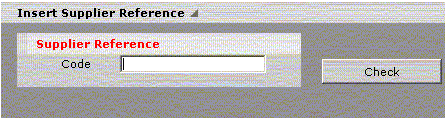

Fig 31. Indicating supplier code number

field	action
	field for indicating the Iveco supplier code indicated by the user
push-button	action
	the Check push button checks for the supplier code and if it exists, it permits continuing with the search by drawing
	the push button activates the search by drawing page, displaying the initialized page with the code of the drawing derived from the supplier's indications

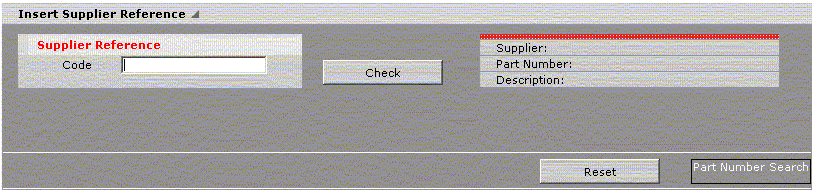

Fig 32. Search by Supplier Serial Number Page

The search continues by selecting the Search Drawing push button that activates the search by Drawing. The search by drawing page is activated with the pre-set drawing code with the drawing code identified by the search by supplier serial number.
