7.7 Search by Range/Model

This function is used to identify the vehicle's Graphic Table from an indication of the Range and Model. It is activated by selecting Range/Model from the Other Searches submenu on the Home Page or from the functions menu on the search pages.

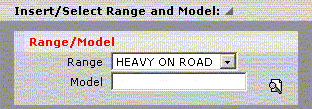

Fig 19. Entering Range

On selecting the search by Range/Model the displayed page asks you to state the Range in the field of that name and the Model keying it in, if known, in the relevant field, or selecting it from the list of Models of the stated Range. The list is displayed by selecting the icon alongside the field.

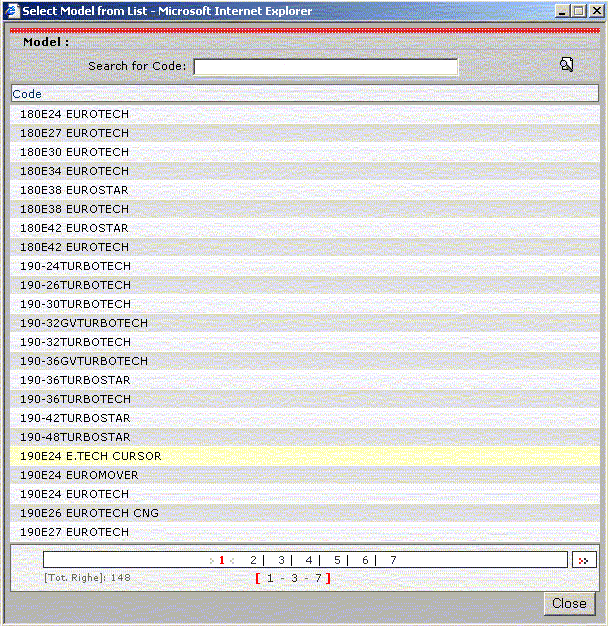

Fig 20. Selecting Model

To continue, select the Check push-button to verify the data entered. If the stated data exist, it is necessary to indicate the Drive and Wheelbase by selecting them from the list.
The Drive is selected from the static list; for the Wheelbase it is necessary to access the list by selecting the icon alongside.

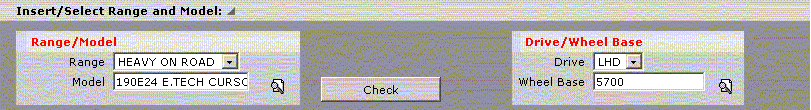

Fig 21. Selecting Drive and Wheelbase

Selecting the Check button enables defining the PIC and VP.

field

action

field specifying the Range, the indication of the Range creates a list of Models in the selected Range

field to select the Model from the Range models list, accessible from the list displayed by the icon alongside.

field specifying the Drive, the selection is made in the Drive list

field specifying the Wheelbase, the selection is made in the list accessible from the icon

icon

action

icon to display the list of Models, Wheelbase

push-button

action

when selected it lets you continue indicating the Drive and Wheelbase; after selecting the Drive and Wheelbase, selecting the push button enables entering the PIC and, when necessary, the VP

The search continues with an indication of the PIC and, if necessary, of the VP if more than one VP corresponds to the chosen PIC.

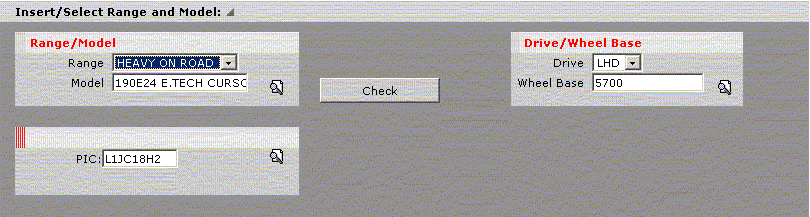

Fig 22. Selecting PIC

field	action
	field to select the PIC from the list displayed by the icon alongside.
	field to select or update the VP corresponding to the indicated PIC
icon	action
	activates a panel containing the PIC list for the data given on the search by Range/Model page.

To run a targeted search for an optional or a drawing, select the relevant checkbox for the required type of search and enter the optional or drawing code. If the entered code exists, the corresponding description is displayed; on the contrary, an error message is displayed. Alternatively, click on the icon by the code field and the list of codes and descriptions of the optionals/drawings related to the specified vehicle is displayed. In the list, entering a code or part of the description and clicking on the Search button displays all the codes/descriptions corresponding to the set filter.
With a double-click on the relevant code, the list is closed and the code is entered on the search page.

button	action
	optional check, indicates the optional search type
	optional check, indicates the drawing search type
field	action
	field where the user enters the optional/drawing code if known; otherwise, the user selects the icon alongside to access the optional/drawing list of the stated vehicle and selects the relevant code by double-clicking with the mouse.
	updated by the program after defining the optional/drawing code when the code exists
icon	action
	activates a panel containing an optional/drawing list of the stated vehicle where the user selects the relevant code or description. The optional list contains the standard optionals, the complementary ones and the CCMs.

Selecting the Technical info sheet push button takes you to the page containing the vehicle's specifications and optionals.

push-button	action
	when selected it displays the panel of the technical info sheet giving the vehicle's specifications and optionals (standard, complementary and CCM)
	it resets the fields on the page to permit a new vehicle search by range/model

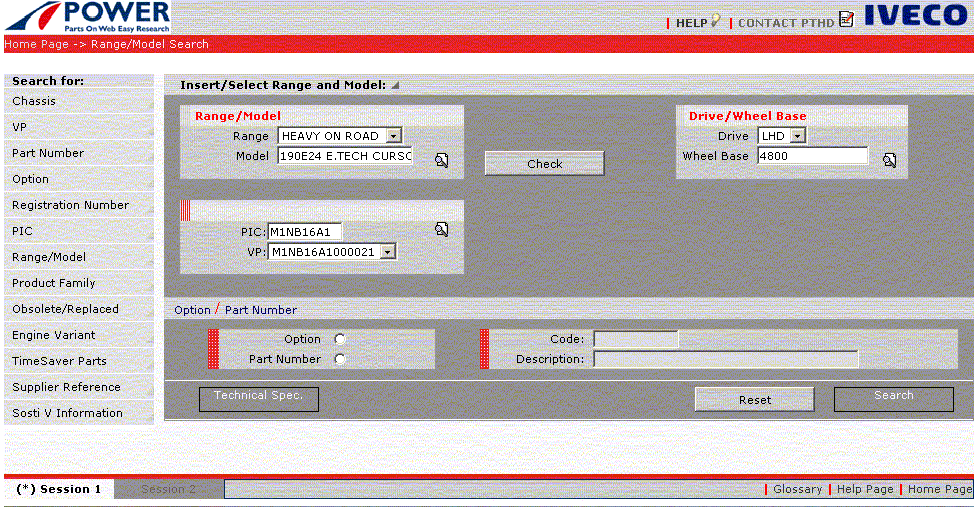

Fig 23. Search by Range/Model

Clicking on the Search button of the search page leads on to select the Class - Assembly - Subassembly to identify the Graphic Table; selecting search by drawing leads on to select the Graphic Table.

push-button	action
	when selected it activates the Class Selection page in the case of an optional or Table Selection in the case of a drawing for the data entered by the user in the code field
