7.9 Search by Exhausted/Substituted Items

This function lets you identify the substitutes or substitutions for a spare part. From this page you go to search by drawing. The function is activated from the Other Searches menu of the Home Page or from the functions menu on the search pages, selecting Exhausted/Substituted. The displayed page asks you to indicate the drawing code in the field of that name, if known, otherwise select from the list accessible with the icon alongside the code field. After stating the code, the program updates the description of the drawing.

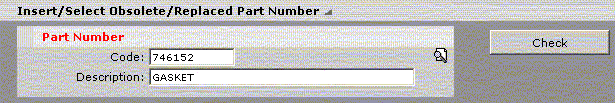

Fig 26. Entering Drawing code

A followed by the specification of the drawing code, the Check button checks the existence of the code. If successful, it enables one of the View Substitutes or View Substitutions buttons according to the stated drawing. After selecting the enabled button, the table containing the detailed substitution data is updated

field	action
	field to indicate the drawing code, if known, or select from the drawings list that can be accessed with the icon alongside.
push-button	action
	the push-button checks the drawing code is correct; if successful it enables the buttons to display the substitutes/substitutions
	button enabled if the indicated drawing has been substituted, it activates the detailed data view of the substitutions
	button enabled if the indicated drawing substitutes other drawings, it activates the detailed data view of the substitutes
icon	action
	icon to display the list of Exhausted/Substituted drawings

The table of substitutions displays the code, description, type of substitution for the substituted drawing and code, description, quantity and type of substitution for the substitution and the date of the substitution.
It is possible to save the substitution list to file on the local workstation, print it out and access the search by drawing of the stated spare part.

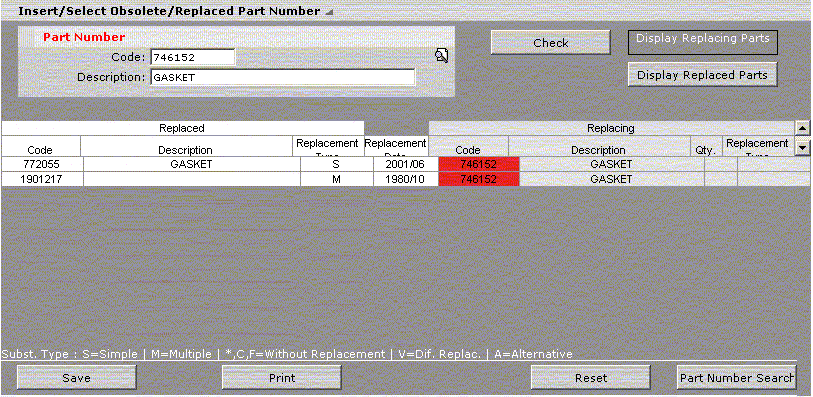

Fig 27. Table of substitutions

push-button	action
	the button checks the existence of the indicated drawing code; if successful, it enables reference to the substitutions table
	it permits saving the substitutions table to file, locally
	it permits printing out the substitutions table
	it activates the search by drawing page of the drawing with the indicated code
	it resets the fields on the page to permit a new vehicle search by exhausted/substituted item
