8.2 Compare VP

This function permits comparing the optionals of vehicles identified with the VP. This comparison highlights the common and specific optionals of the vehicles.
The functions are accessed by selecting the item of that name from the Tools submenu on the Home Page or from the Search by VP page. Following activation, the Catalogue page asks you to indicate the PIC.

Fig 4. VP lift for indicated PIC

After indicating the PIC the page displays the corresponding VP list. The fitted optionals are shown for each VP. It is possible to select the required VPs from the list and display only those or save the comparison list to file on the local workstation, or print it out, or access search by VP, after selecting a VP from the list.

field	action
	entered PIC code, if known, or selected from the list displayed with the icon alongside the code.
push-button	action
	when selected it adds the VP codes corresponding to the VP/Optional list
icon	action
	activates a panel containing the list of PIC codes where the user selects the relevant code.

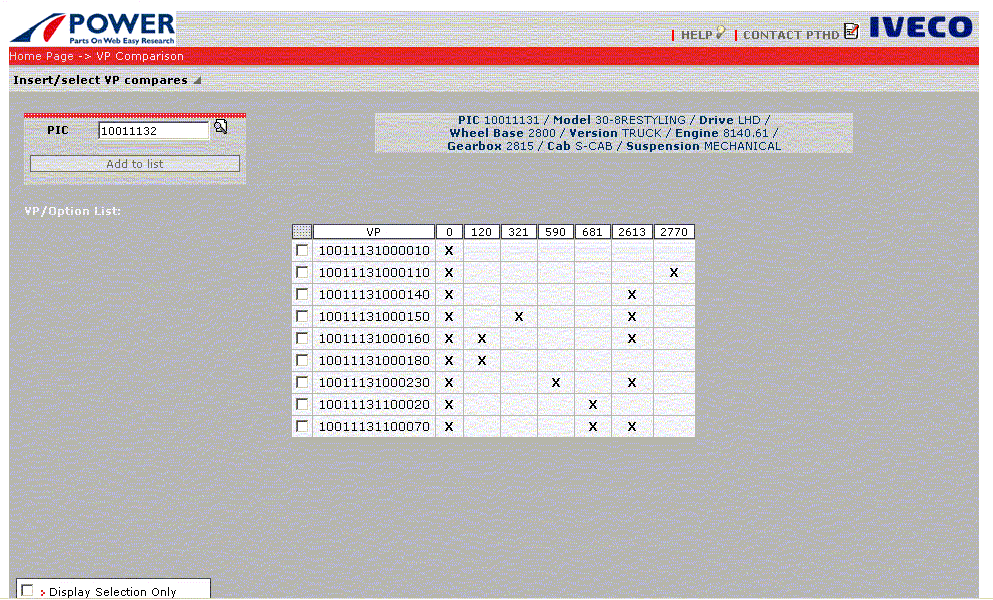

Fig 5. Compare VP page

field	action
	selects the VP code
	when selected it displays only the selected VP codes in the list

push-button	action
	when selected it closes the current page and displays the Search by VP page
	when selected it closes the current page and displays the Search by VP page
	when selected it saves the list of VPs in html or text format
	when selected it prints out the list of VPs
